For copper pipe work, compression fittings provide a solid way to join pipes without welding. Both professional plumbers and hands-on homeowners rely on these connectors for fast repairs and installations. The assembly is made up of the fitting body, a compression ring ferrule, and a compression nut. As the nut is tightened, it seats the ferrule and builds a tight seal around the tube.
1/2 Inch Compression Fitting
To support a successful installation, adhere to a few key best practices. Begin with straight cuts and remove burrs from the tube end. Then check the tube end for scratches, distortion, or other damage. After assembly, tighten by hand before using a wrench for final tightening. Use two wrenches so the fitting body is held steady and the pipe does not twist. Avoid overtightening, and never reuse a ferrule that has already been compressed if you want a dependable, leak-free joint.
Compression fittings are often preferred over soldering for many applications. They remove the need for a flame and are reusable in many scenarios. Their quick setup in tight spaces is a valuable advantage. However, they are bulkier than soldered joints and may not be ideal in high-stress locations or hidden areas that are hard to inspect. For best results, use matched parts and follow the manufacturer’s torque or turn-count instructions.
- Copper tubing can be assembled with compression fittings without soldering or open flame.
- The primary parts are the fitting body, ferrule or olive, and compression nut.
- Prepare tubing with square cuts and deburring for reliable seals.
- Use two wrenches, tighten carefully, and avoid overtightening to reduce leaks.
- Select brass or other compatible materials and follow the manufacturer’s instructions.
What Are Compression Fittings And How They Work
A compression fitting secures tubing without requiring solder, flame, or heat. They use a simple threaded connection. This connection compresses a ring against the pipe to form a seal. They are especially practical in confined areas and field repairs where a fast, dependable connection is needed.
Main Components
The main pieces are the fitting body, the olive, and the tightening nut. The body provides the seat and thread. The ferrule, also called an olive, is positioned between the compression nut and the pipe. When the compression nut threads onto the body, it drives the ferrule into position.
Sealing Principle
Sealing happens by radial compression. When the compression nut is tightened, the ferrule is pushed into the tapered bore of the fitting body. This motion makes the ferrule to deform slightly and press against the tubing outer diameter.
The result is a line-contact seal that bites into the tube and resists leaks. The ferrule’s shape and material have a direct effect on seal performance when pressure or temperature changes.
Names And Variations Used Across Trades
Different trades use varied terms for the same idea. In plumbing supply and HVAC catalogs, terms such as compression joint, compression couplings, and compression nut are common. In instrumentation work, vendors list compression joints and compression fittings plumbing alongside flare and push-fit options.
| Name | Common Use | Main Feature |
|---|---|---|
| Tightening nut | Water lines and gas connections | Tightening action compresses the ferrule |
| Ferrule | HVAC, refrigeration, instrumentation | Compresses to grip and seal the tube |
| Mechanical compression joint | Field repairs and connections | No-solder joint often serviceable later |
| Straight compression couplings | Extending or joining tubing runs | Two-ended compression seal |
| Compression fittings plumbing | Residential and commercial plumbing | Many materials, shapes, and sizes |

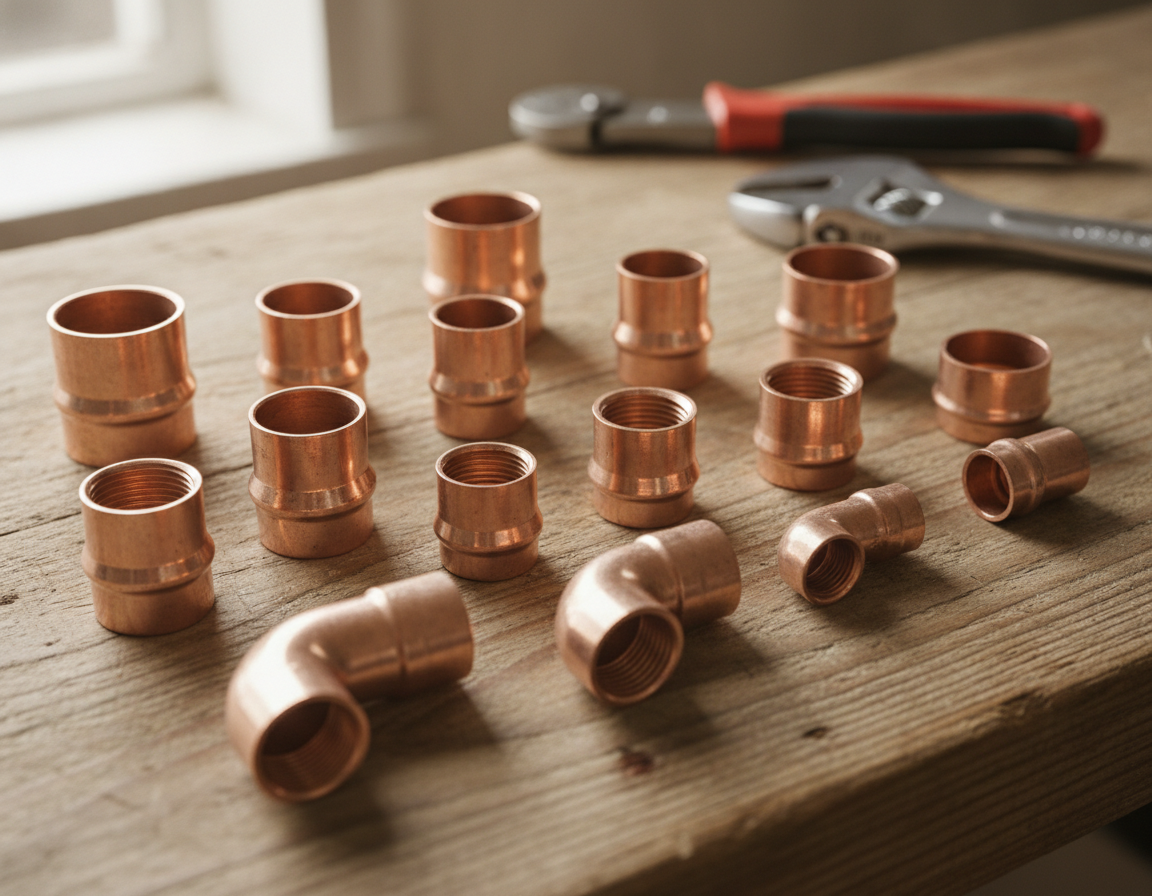

Copper Tubing Compression Fittings
Material selection is critical to compression-joint performance. It affects seal quality, long-term durability, and corrosion risk. Copper fittings are often a good match for copper tubing. They share thermal expansion properties and ensure consistent metal contact.
Brass compression fittings also offer helpful ductility. That ductility helps the fitting form a reliable seal without unnecessarily damaging the tube.
Stainless steel compression fittings are ideal for high-pressure or high-temperature systems. They also withstand many aggressive fluids. Plastic compression fittings may be suitable for low-pressure household water lines. They eliminate metal-to-metal contact, which can cause dissimilar-metal issues.
It is essential to match materials to the application, pressure, and fluid type. For refrigeration and some plumbing, copper or brass parts are recommended. These materials help reduce mixed-metal stress. When high mechanical strength is required, stainless steel is often the better choice. Just remember, its harder ferrules can deform soft tubing if not sized correctly.
When using copper tubing, avoid it with carbon steel or other dissimilar metals. Galvanic corrosion can quickly accelerate deterioration where the metals meet. This reduces the service life. If mixed metals are unavoidable, use dielectric unions, insulating sleeves, or choose compatible materials to limit electrical contact.
Before assembling, check the tubing’s finish and wall rigidity. Good surface quality allows the ferrule to bite evenly and create a lasting seal. Always use the manufacturer’s compatibility guidance before mixing materials. This limits leaks and increase the life of the joint in the field.
Compression Tee And T Fitting Types And Sizes For Copper Tubing
The correct compression tee depends on flow requirements, available space, and tubing size. Compression tees are commonly used in plumbing, refrigeration, and instrumentation systems. Ensuring a proper fit between ferrule geometry and body taper is key to preventing leaks.
Variants For Branching And Tight Spaces
Straight tees allow flow through three aligned ports. Branch tees route flow into a side line with less abrupt direction change. Compact tees are designed for wall cavities and tight areas where standard tees may not fit. They accept common sizes like the Compression Tee 1/2 for residential lines.
Common Size Labels And Cross-Fit Options
Installers often order parts by nominal tube OD. Popular choices include the 1/4 Compression T Fitting and the 1/2 Compression T Fitting. For small-diameter tube runs, the 1 4 Tee is often used. For larger branches, the 1/2 Inch Compression Fitting and 1/2 OD Compression Fitting are often selected. Cross-fit adapters, like 1/2 X3/8 or 3/8 X 1/2 Compression Fitting, enable mixing sizes when needed.
Combination Tees And Adapters
Combination tees like the 1/2 X 1/2 X 3/8 Tee are used for size transitions. A 1/2 X3/8 adapter steps a 1/2 line down to a 3/8 branch. The 1 2 To 1 4 Compression Fitting gives a compact reduction for instrumentation taps, sensors, or small branches.
Choosing Brass Tee And T Joint Fittings
Brass is the commonly chosen material for copper tubing connections due to its corrosion resistance and thermal expansion compatibility. Look for T Brass Fitting options for strong joints. The 1/2 Brass Tee and 1/2 Tee Brass are common choices for main lines and branch runs. Before mixing brands, confirm thread pitch, ferrule fit, and body taper for a reliable seal.
| Fitting Style | Usual Application | Common Size Labels | Material Guidance |
|---|---|---|---|
| Inline Tee | Straight main run with branch connection | 1 4 Tee and Compression Tee 1/2 | Brass works well for copper tubing |
| Side Tee | Side outlet from main pipe | 1/2 Compression T Fitting, 1/4 Compression T Fitting | Match ferrules with fitting bodies |
| Low-Clearance Tee | Confined locations and wall spaces | Compression Tee 1/2 and 1/2 Inch Compression Fitting | Shorter body while using ferrule compression |
| Combination Tee | Size transitions and instrumentation | 1/2 X 1/2 X 3/8 Tee, 1/2 X3/8, 3/8 X 1/2 Compression Fitting | Step-down adapters are available for small branches |
| Brass T Joint | Corrosion-resistant copper systems | Common labels include T Brass Fitting | Compatible with copper; verify thread pitch and taper |
When To Use Compression Fittings Vs Soldering Or Other Methods
The best joining method depends on the job conditions, code requirements, and fitting capability. Compression fittings are ideal for tight spaces and areas near flammable materials, as they don’t require flame. Soldering is often better when a permanent, low-profile, visible installation is desired.
Why Compression Fittings Help In Tight Spaces
No-flame fittings are practical for emergency repairs and retrofitting, as they remove the need for hot work permits or torches. They only require basic hand tools, making them a go-to for fast fixes. Reusing these fittings is possible in systems with low stress, which is beneficial for testing or replacing sections.
Profile Limits And Durability Concerns
Compared with soldered joints, compression fittings are bulkier. Ferrules can make it hard to remove fittings, limiting their reusability. In systems with vibration or pulsation, compression joints may loosen over time, so soldered or brazed connections may be better.
Application Selection Guide
For plumbing repairs in tight spaces, compression fittings are useful when a no-flame connection is needed. For visible runs where appearance is important, soldering is the better choice.
For gas lines, compression fittings are seen for short runs. Always verify local code requirements and use approved materials. Regularly inspect joints to ensure safety.
In HVAC and refrigeration, choose copper fittings designed for refrigerants. For heavy thermal cycling, brazed or flare connections may last longer than compression fittings. Compression fittings, like a Compression Tee Fitting or T Compression Fitting, are suitable for service taps and temporary connections.
For instrumentation, select fittings that support leak-tight, high-pressure, or high-purity lines. Stainless-steel compression fittings can perform very well, but pressure and media ratings must be confirmed before use.
| Factor | Compression Joint | Soldered/Brazed Joint |
|---|---|---|
| Installation Tools | Simple hand tools | Heat source, flux, solder, or filler metal |
| Speed | Quick for many repairs | Slower setup, longer cure/cool time |
| Installed Profile | Higher bulk | Slimmer finished appearance |
| Serviceability | Sometimes reusable, but ferrules limit reuse | Cut-out repair usually required |
| Resistance To Vibration | Moderate; may loosen | High resistance with rigid bonded joints |
| Typical Applications | Plumbing repairs, gas lines, HVAC service tees | Low-profile permanent installations |
Match the fitting type to the system’s needs, observing pressure, temperature, and material compatibility guidelines. Compression fittings, including Compression Tee Fittings or T Compression Fittings, are useful for plumbing, gas lines, HVAC fittings, and instrumentation when serviceability or a no-flame approach is necessary.
Step-By-Step Installation Best Practices For Reliable Joints
Effective installation starts out with thorough preparation and a well-ordered sequence. Every step matters because poor preparation can cause leaks or damage. This section explains how to install compression fittings on copper tubing and when to source compatible parts or tools from Installation Parts Supply.
Preparing copper tubing correctly is essential for a good seal. Cut the tube squarely with a tubing cutter, then remove burrs with a reamer or deburring tool. Check the tube end for nicks, scratches, dents, or deformation. Clean the tube and check the fitting and ferrule for damage before starting the assembly.
Start by sliding the nut onto the pipe with the threads facing the tube end. Then place the ferrule or olive onto the pipe. Insert the pipe fully into the fitting body, ensuring the ferrule seats correctly. Hand-tighten the nut first, align the assembly, and then use a wrench for final tightening.
Proper tightening is central to a secure compression seal. Hold the fitting body with one wrench while tightening the nut with another. Follow the manufacturer’s instructions for rotation-based turns, not just torque readings. Avoid over-tightening, as it can flatten the ferrule and lead to leaks.
After disassembly, replacement ferrules are often needed. Once an olive or ferrule has been compressed, it should not be reused. If a ferrule is stuck, use a ferrule puller or carefully cut and remove it to avoid damaging the fitting body.
Plastic tubing usually needs an insert to maintain shape under compression. Copper tubing generally does not require inserts. After reassembly, open the supply slowly and inspect the joint for leaks. If needed, tighten in small measured increments. For compatible parts, sizing details, and specifications, consult Installation Parts Supply.
Compression Ferrule Design And Performance Factors
The choice of ferrule directly influences a compression joint’s performance under pressure and over time. Both one-piece and two-piece ferrules have benefits, limitations, and installation considerations. The design of the ferrule must match with the tubing and fitting body to ensure a secure and lasting seal.
Common ferrule shapes and material choices
Ferrules are most often made from brass or stainless steel. For applications requiring chemical resistance or high-temperature tolerance, graphite or specialty alloys are used. A single-piece ferrule is easier to install and works well with softer copper tubing. On the other hand, a two-piece ferrule includes a rear ferrule, preventing rotation and galling, which is essential for stainless systems.
Asymmetrical and symmetrical ferrule choice
An asymmetrical ferrule must be installed in the correct direction to support consistent performance. It is often preferred for high-reliability applications. In contrast, a symmetrical ferrule can be installed in either direction, making it quicker to assemble. Yet, it may not perform as well on hard plastic tubing, potentially leading to leaks due to varying tubing OD tolerances.
Line contact and surface contact seal geometry
The design of the ferrule determines whether it uses a line contact or surface contact seal. Line-contact seals often resist creep and vibration better. Over-tightening can, though, convert a line contact seal into a surface contact, increasing the risk of leakage over time.
Tubing considerations and material behavior
Metal tubing needs smooth walls and accurate square cuts so the ferrule seats properly. Copper tubing, even when stored in coils, can have slight irregularities that affect the seal. Soft plastics and PTFE can creep or cold-flow under compression, which may reduce seal integrity over time.
Reducing PTFE cold flow and soft tubing problems
To reduce PTFE cold flow, consider tubing inserts, backup seals, or internal O-rings. Hardened ferrules can also help distribute the load. In high-pressure or high-purity systems, choose materials and approved lubricants that limit galling and residue. Ensure that the ferrule material matches the tubing and application requirements to maintain a reliable seal throughout its service life.
Installation Mistakes And Compression Fitting Troubleshooting
When troubleshooting compression fittings, start with the basics: check the nut tightness, tubing alignment, and ferrule condition. Minor leaks often come from under-tightening, poor tube seating, or a mis-seated ferrule. To avoid damaging the tubing, stabilize the fitting body with one wrench while tightening the nut with another.
Problems from overtightening may include crushed ferrules, distorted pipe, and leaks that do not stop. Too much tightening force can flatten the ferrule or damage copper tubing, producing a weak seal. When tubing is flattened or a ferrule is gouged, cut back the tube and install a new ferrule and nut.
Under-tightening results in a gap, allowing slow leaks. For small weeps, tighten in small increments with a wrench until the leak stops. Use gradual tightening to avoid over-compressing the ferrule while still achieving a reliable seal.
Misalignment or twisting can keep the ferrule from compressing evenly. Ensure the tubing enters the fitting straight and fully. If the ferrule is misaligned, it can jam or become difficult to remove. Remove a stuck ferrule with a ferrule puller or carefully cut it away while protecting the tubing.
Identifying and fixing leaks starts with checking ferrule seating, tube condition, and fitting parts. Replace any damaged ferrule, nut, or fitting body. As a temporary correction, incremental tightening may stop a small leak until a proper repair is completed. If the leak persists, consider re-cutting the tube end and reassembling the fitting.
Dealing with corrosion and galling calls for corrective repair and preventive material selection. Corrosion can pit the sealing surfaces, leading to recurring leaks. Galling can seize the nut and body, making disassembly difficult. For stuck nuts, apply penetrating oil and allow time for it to soak in. If threads, tapers, or sealing faces are damaged, replace the affected parts.
Choosing the right materials can prevent corrosion and galling. Avoid pairing carbon steel with copper to prevent galvanic reactions. Select ferrules and fittings suitable for your system’s chemistry and temperature. In cleanroom or high-purity environments, volatile cleaning agents can increase galling risk; use ferrules designed to resist galling and compatible lubricants when allowed.
Stuck nut recovery often begins with penetrating oil and patience. If the nut will not move, cutting off and replacing the nut and ferrule may be quicker than forcing it. Use the correct tools so the fitting body is not damaged.
When a compression joint is not the right choice, consider alternatives. Systems exposed to constant vibration, long-term dynamic stress, or strict low-profile needs may benefit from soldering, mechanical crimp systems, flare fittings, or welded joints. Compare soldering vs compression for permanence, profile, and code requirements when planning a repair or new installation.
| Problem | Common Cause | Quick Fix | Permanent Solution |
|---|---|---|---|
| Slow leak | Loose nut or poorly seated ferrule | Tighten gradually using two wrenches | Re-cut tubing and rebuild with new compression parts |
| Leak continues after tightening | Overtightening damage to ferrule or tubing | Remove damaged section and install new nut and ferrule | Use torque guideline and avoid overtightening |
| Seized ferrule or nut | Ferrule bite, seat deformation, or galling | Use penetrating oil, ferrule puller, or careful cutting | Use compatible materials that reduce galling |
| Corrosion or pitted seal | Incompatible materials or chemical exposure | Replace corroded parts | Select compatible metals; follow code for gas lines |
| Joint fails under vibration | Dynamic stress exceeds fitting suitability | Clamp, secure, and inspect the affected run | Use soldering, welded joints, or crimp systems as alternative to compression fittings |
Final Thoughts
In summary, Copper Tubing Compression Fittings provide a versatile, flame-free way to join copper tubing across many applications. They work well when materials are matched and installation techniques are followed correctly. Brass, copper, stainless steel, and certain plastics are compatible, provided they avoid galvanic corrosion and thermal mismatch.
The Installation Parts Supply guide suggests replacing ferrules during reassembly and ensuring fittings are tightened to manufacturer specifications. That practice helps maintain reliable sealing.
Choose compression fittings for quick repairs, confined spaces, and removable joints. They do have limits when compared with soldered joints. Long-term performance relies on ferrule design, tubing quality, and correct assembly sequence.
In high-pressure or high-vibration service, choose ferrules and fittings rated for those conditions. When compression fittings are not suitable, consider soldering, brazing, crimping, flaring, or welding.
This summary highlights the value of careful installation and routine inspections. Ensure cuts are square and deburred. Use a sliding nut, ferrule, and insert, and tighten by hand followed by measured wrench turns.
Follow manufacturer guidelines for torque or turn-based tightening to prevent leaks or damage. For matching parts and compatible ferrules, check with qualified suppliers. They should offer 1/4 Compression T Fitting, 1/2 Compression T Fitting, and brass tee options to match your project.
